Feature Statistics

Purpose

The tool is provided for calculating basic statistics for point, multipoint, polyline and polygon features.

Description

Feature Statistics tool allows to easily gather selectable set of basic feature statistics for a given feature class of any geometry type with various output options.

Calculating feature statistics

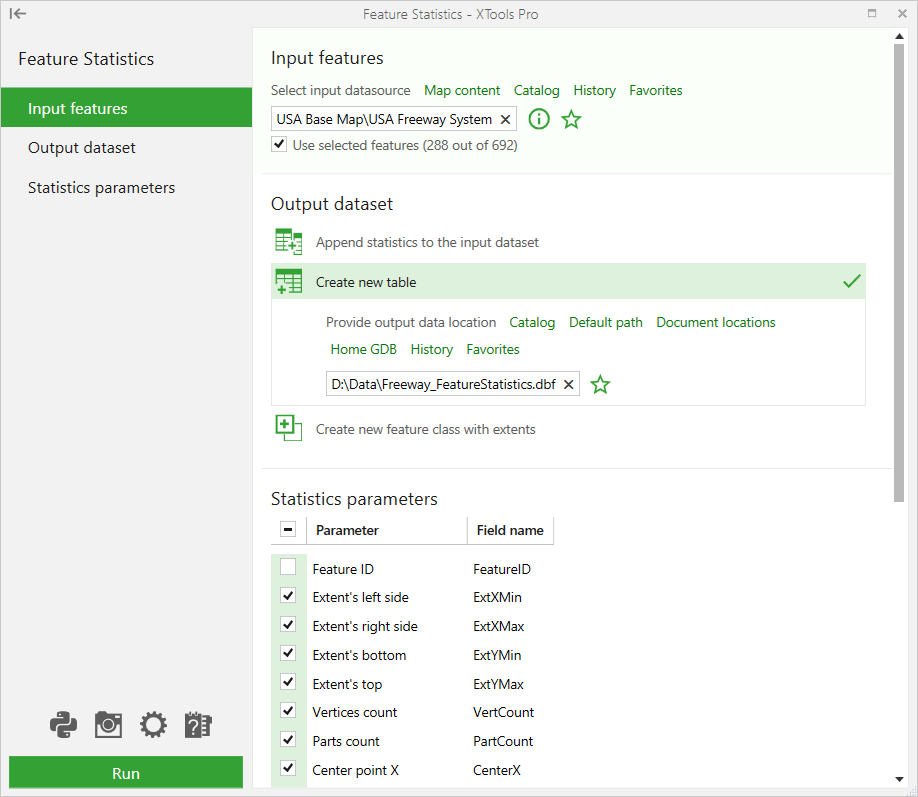

Select the "Feature Statistics" tool from the XTools Pro Table Operations menu.
Select input features for gathering basic statistics.
Select required output option and specify the name and location of the output table or feature class.
Select statistics parameters to calculate and modify default field names if required.
Press Run.

There are following output options available:

Add statistics to input dataset
attribute fields with calculated statistics will be added to the input dataset

Create new table
a new table with fields containing calculated statistics will be created

Create new feature class with extents
a new feature class with input feature extents will be created, fields with calculated statistics will be added to the attribute table

Statistics parameters and applicable geometry types are given in the table below (direction calculation method can be customized in XTools Pro Options):

Statistics parameter	Comment	Applicable geometry
Feature ID	Input feature ID	Points/Polylines/Polygons
Extent's left side	Feature extent minimum X coordinate	Polylines/Polygons
Extent's right side	Feature extent maximum X coordinate	Polylines/Polygons
Extent's bottom	Feature extent minimum Y coordinate	Polylines/Polygons
Extent's top	Feature extent maximum Y coordinate	Polylines/Polygons
Vertices count	Number of vertices in a feature	Polylines/Polygons
Parts count	Number of parts in a feature	Polylines/Polygons
Interior rings count	Number of interior rings in a polygon	Polygons
Exterior rings count	Number of exterior rings in a polygon	Polygons
Center point X	Feature center X coordinate	Points/Polylines/Polygons
Center point Y	Feature center Y coordinate	Points/Polylines/Polygons
Nearest to center point X	X coordinate of a real point nearest to center	Multipoints
Nearest to center point Y	Y coordinate of a real point nearest to center	Multipoints
From-point X	X coordinate of a polyline "From" point	Polylines
From-point Y	Y coordinate of a polyline "From" point	Polylines
To-point X	X coordinate of a polyline "To" point	Polylines
To-point Y	Y coordinate of a polyline "To" point	Polylines
Label-point X	X coordinate of a polygon label point	Polygons
Label-point Y	Y coordinate of a polygon label point	Polygons
Area	Polygon area value	Polygons
Length	Polyline length or polygon perimeter value	Polylines/Polygons
Z	Z coordinate of a point	Points
Minimal Z	Minimum Z coordinate of a feature	Polylines/Polygons
Maximal Z	Maximum Z coordinate of a feature	Polylines/Polygons
Average Z	Average Z coordinate of a feature	Polylines/Polygons
M	M value of a point	Points
Minimal M	Minimum M value of a feature	Polylines/Polygons
Maximal M	Maximum M value of a feature	Polylines/Polygons
Average M	Average M value of a feature	Polylines/Polygons
Azimuth	Azimuth value of a polyline	Polylines
Rhumb	Rhumb of a polyline	Polylines
Directional angle	Directional angle of a polyline	Polylines
