Center Lines Outside

#new

Purpose

Input features:
Output features:

The Center Lines Outside tool is provided for creating center lines between polygons.

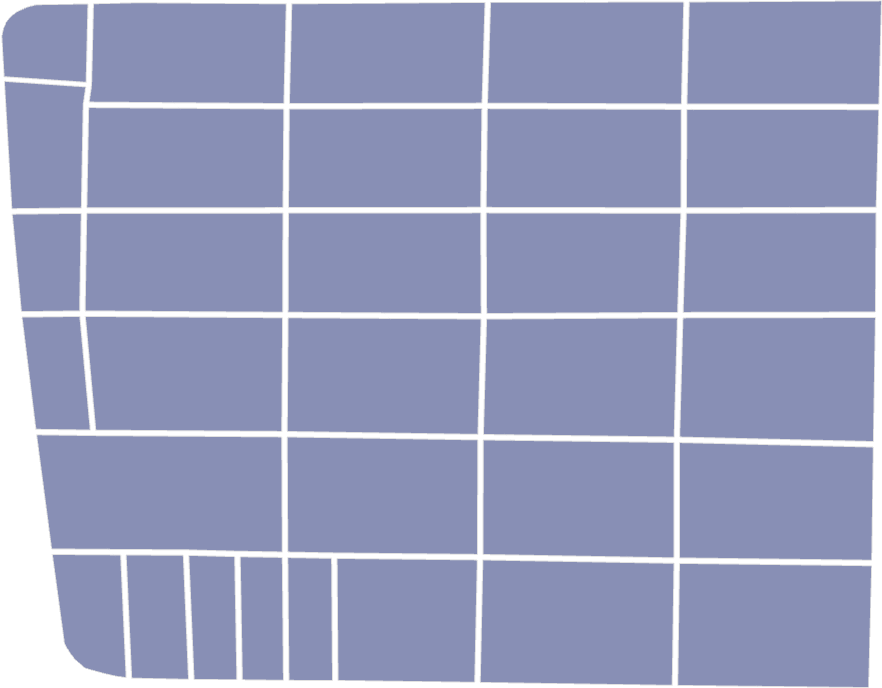

Input polygon
Center lines between input polygons

Cutoff distance

Cutoff distance is a maximum distance between polygons at which center lines will be created. As such, it should always be greater than 0.

For example, using a smaller value for this parameter you can avoid unnecessary center lines across squares, parking areas etc. when creating streets between building polygons. Therefore, the cutoff distance should be carefully selected depending on the input data and task.

Cutoff	Output center lines
10 meters

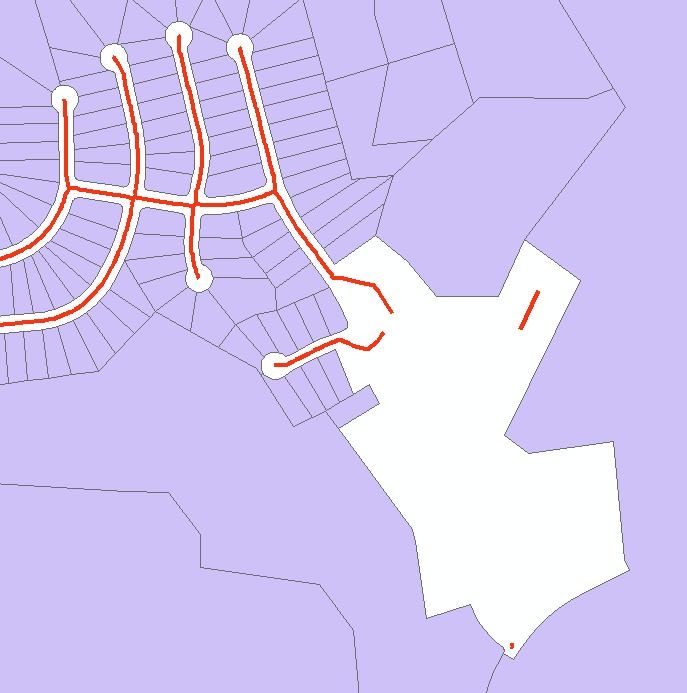

50 meters

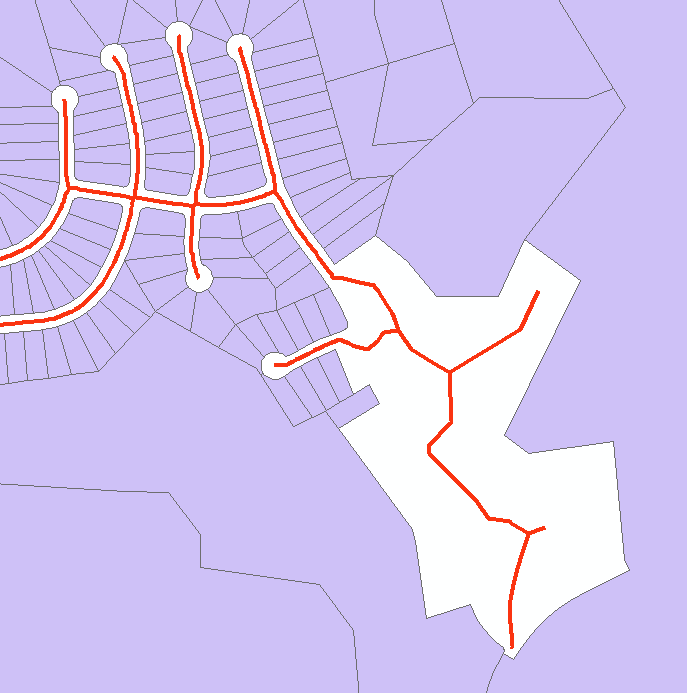

100 meters

Attributes

Attributes of the input polygons are not transferred to the output center lines.
