Outside Center Lines

Purpose

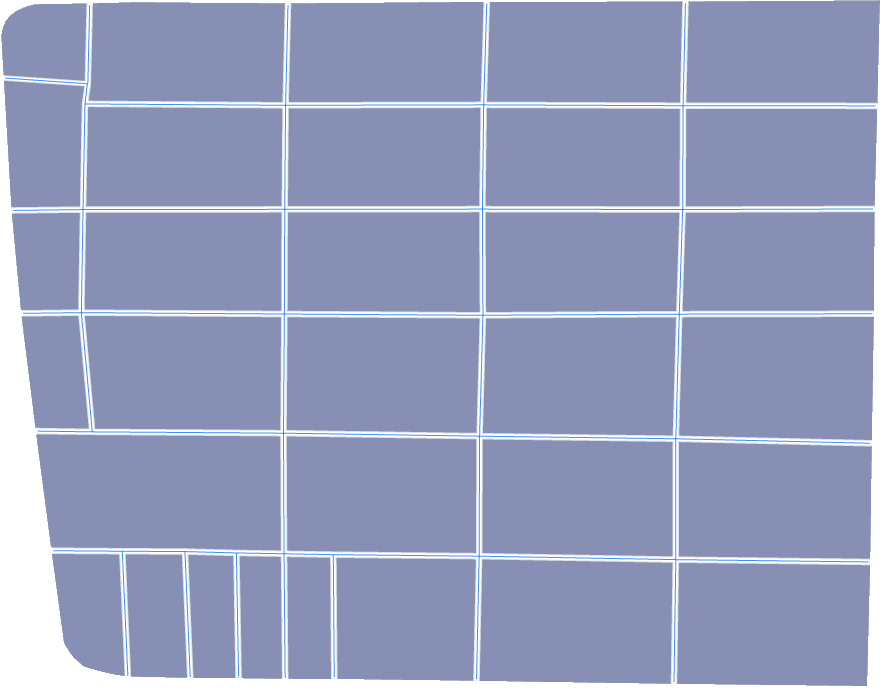

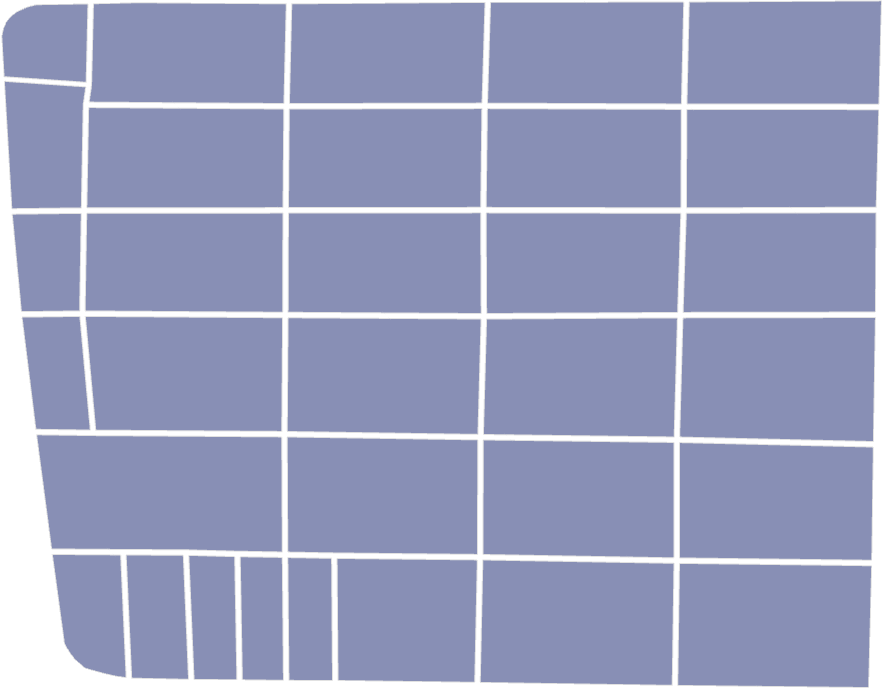

The Center Lines Outside tool is provided for creating center lines between polygons.

Cutoff distance

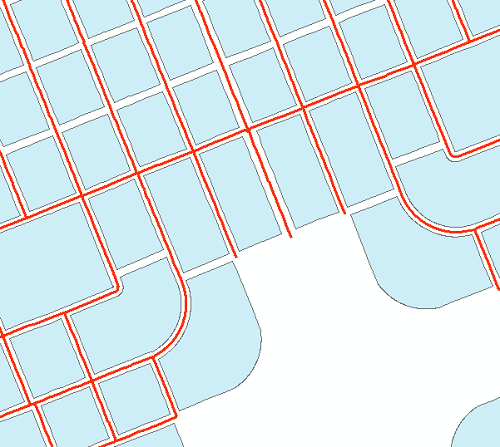

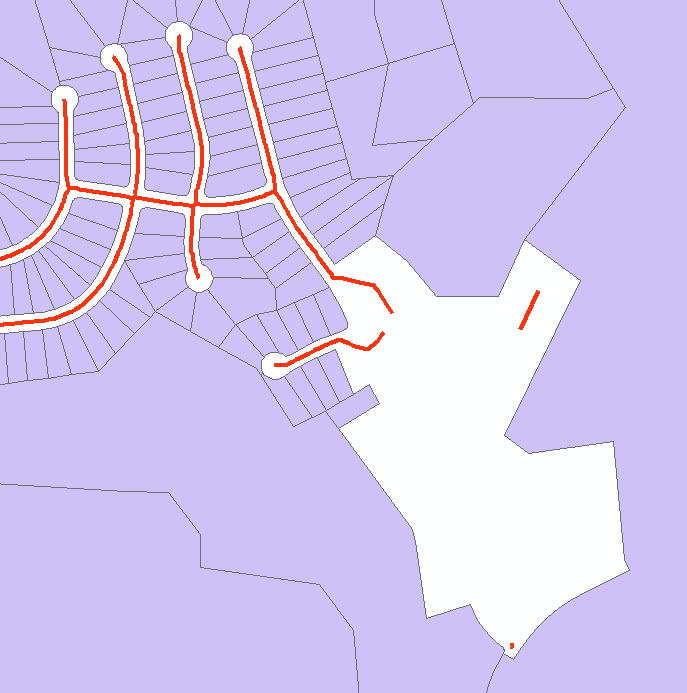

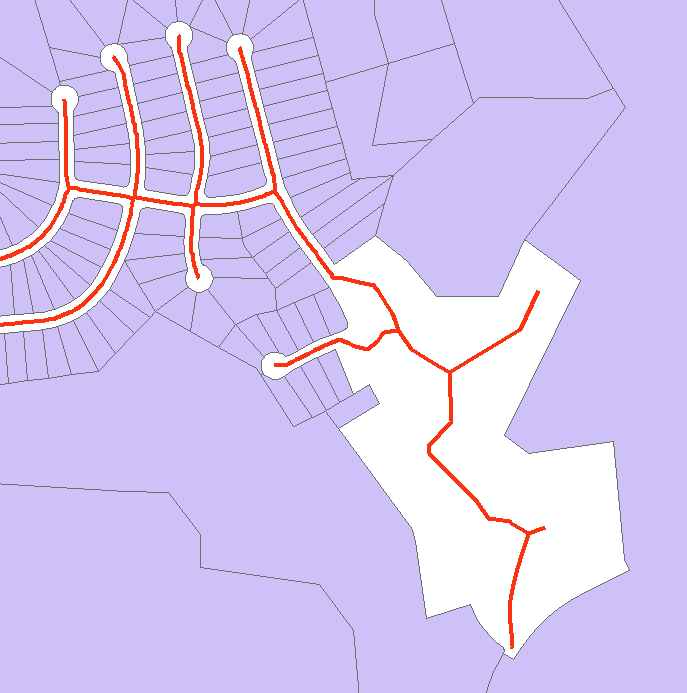

Cutoff distance parameter allows specifying a range of distances between polygons where center lines will be created. For example, using a smaller maximum value for this parameter you can avoid unnecessary center lines across squares, parking areas etc. when creating streets between building polygons. If you wish to avoid the narrow streets or footpaths, you can specify the minimum cutoff distance. Therefore, the cutoff distance should be carefully selected depending on the input data and task.

Notes

- Cutoff distance is required parameter and should be specified before running the tool.
- Maximum cutoff distance must be greater than 0 and greater than minimum distance.
- Minimum cutoff distance can be 0 or greater.
- If the minimum cutoff distance is 0, all center lines will be created, even if the distance between polygons is very small.

Attributes

Attributes of the input polygons are not transferred to the output center lines.
