Sequential numbering of simple plots

After you have separated the polygon feature into simple parts, you can assign the unique sequential numbers to these parts. This can be done using the Features numbering tool.



You can number simple plots both manually and automatically.

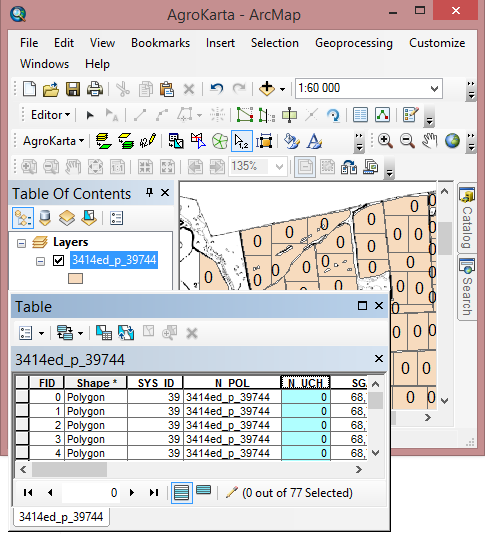

As soon as the tool is run, you can start numbering the features on the map.





To do this in the manual mode click on the required plot on the map and the number will appear automatically.





If you want to number polygons automatically, press the Automatic numbering button. This method is recommended in case if the simple plots you are going to number have been made using the Automatic polygon features separation tool.



The tool can be used with either point or linear features.





The example below demonstrates the continuous numbering of features by all types of the selected layers (lines and points). If you need to number your linear features first and then the point features, you will need to run the tool twice, consequentially switching off the required layers.





The dialog's parametrization includes automatic setting of the following parameter:



• the attribute to assign/save the unique number.
